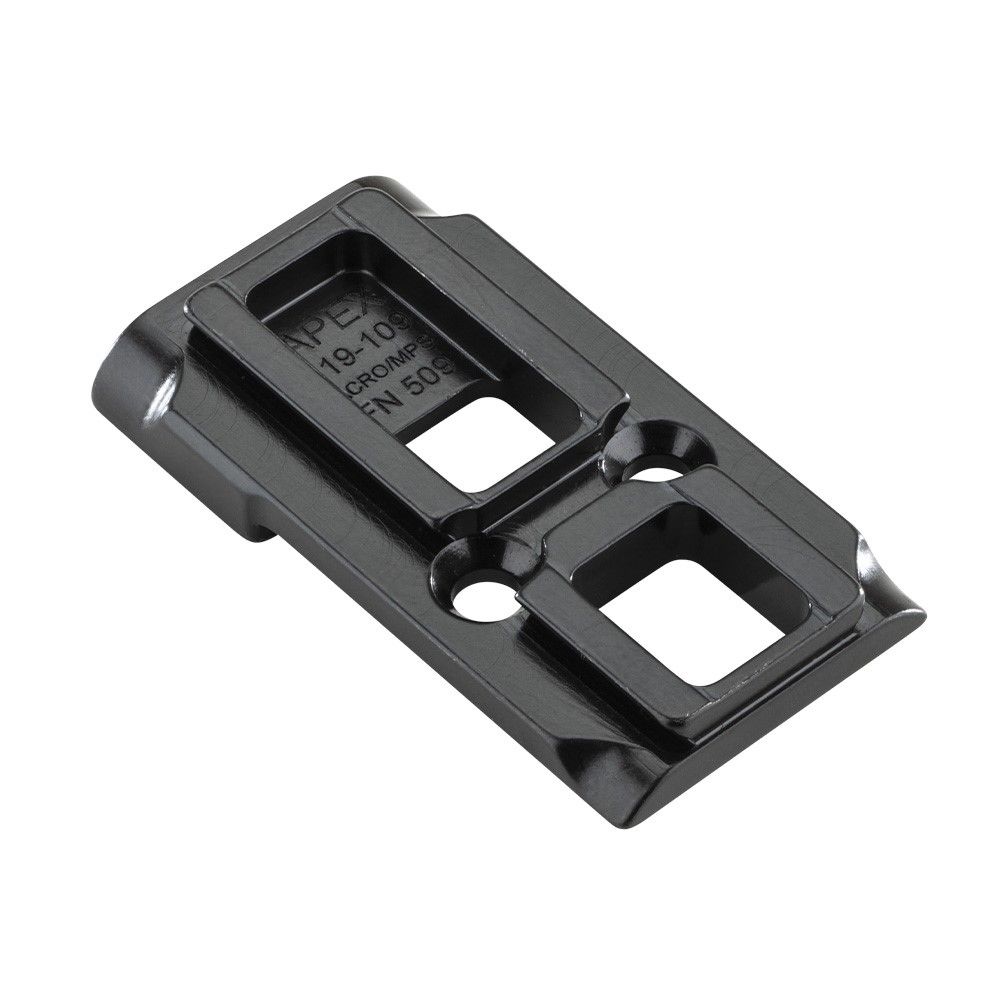

This steel optic mount replaces the factory MRD insert system on FN 509-series pistols equipped with the FN Low Profile Optics Mounting System™. It solves the stacking-plate problem by mounting directly to the slide without an adapter insert, providing a lower, more secure interface for ACRO-footprint optics. Machined from billet steel with a black oxide finish.
Compatibility
- FN 509 (all models with FN Low Profile Optics Mounting System™)
- FN 509 Compact
- FN 509 Tactical
- FN 509 Midsize
- FN 509 LS Edge

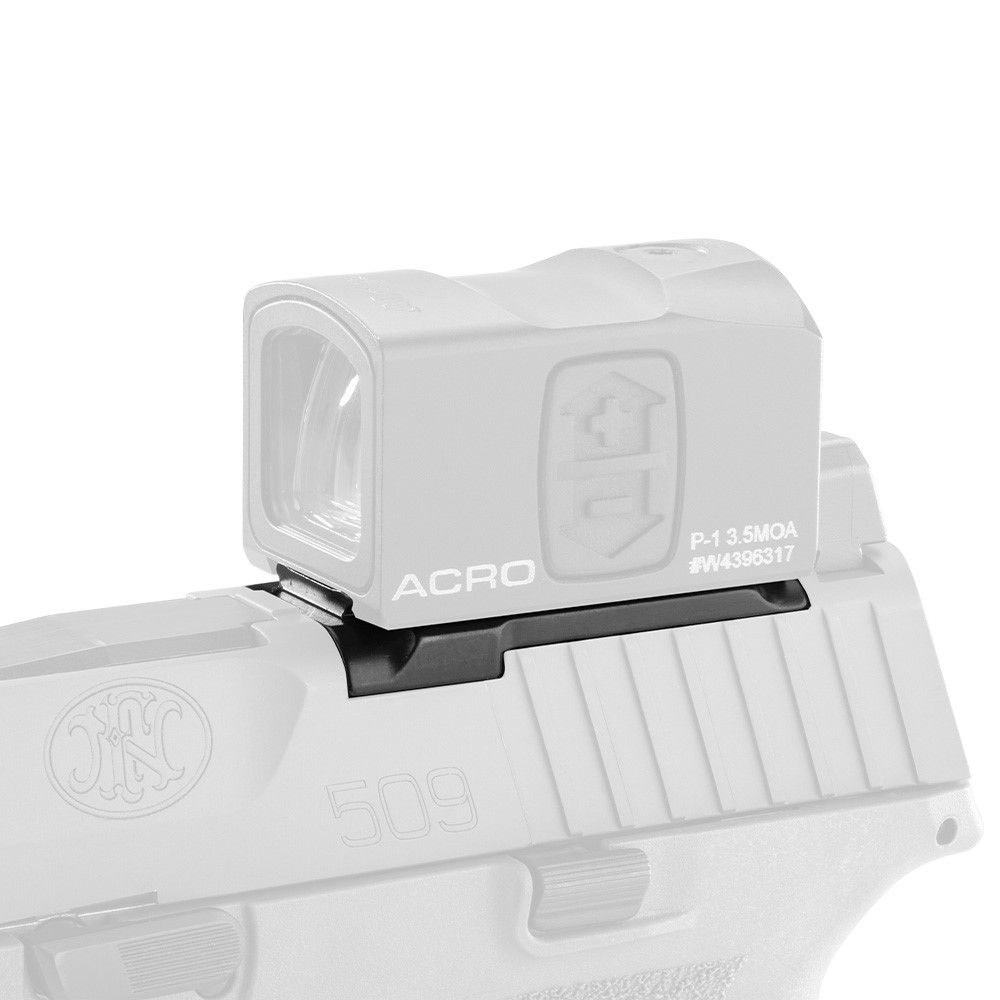

- Aimpoint® Acro™ P-1 & P-2

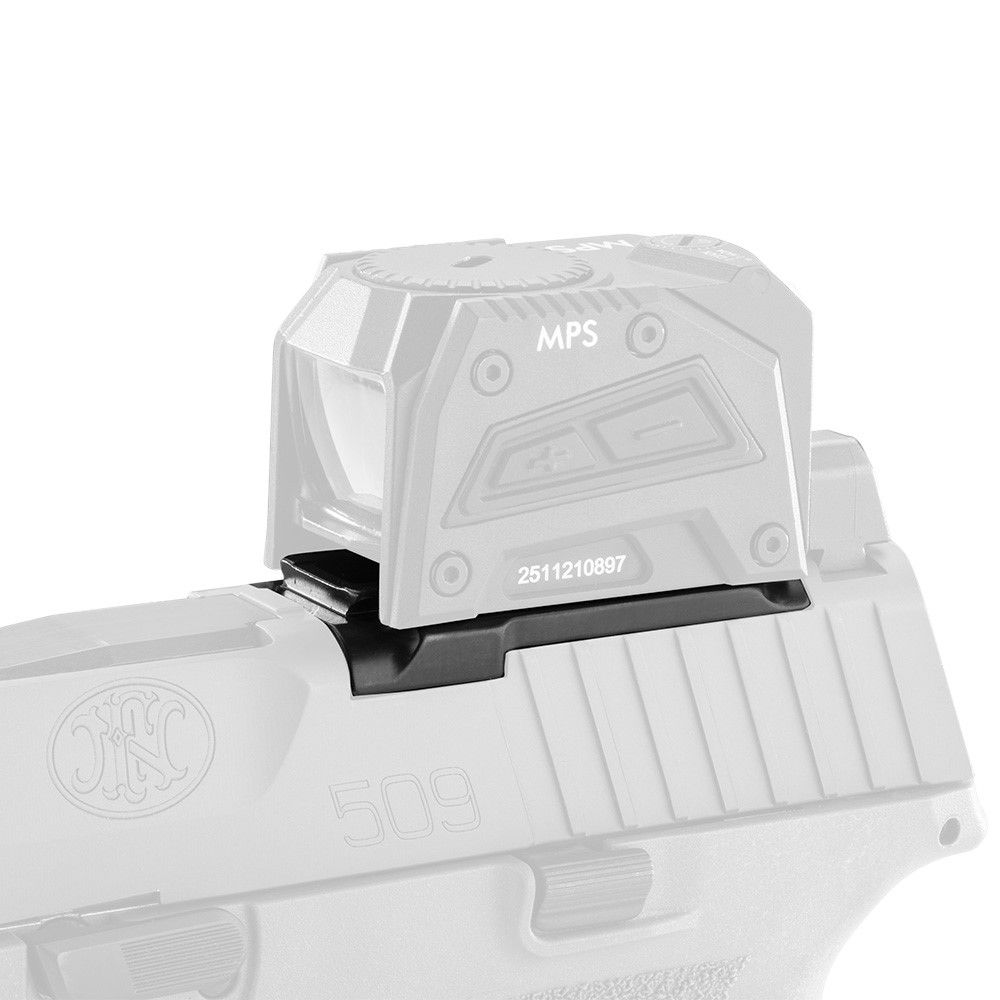

- Steiner MPS
- Lead & Steel Pandora PB-3
- Any optic using the ACRO footprint
Key Features
- Billet steel construction, black oxide finish
- Integrated locking key – mounts directly to slide, no MRD insert required
- Eliminates stacking of adapter plates
- Lower profile vs. factory plate stack
- Includes mounting hardware
Install Difficulty: 2/5
Requires: Torx driver (T10 or T15 depending on slide), thread locker (medium strength). Remove factory optics cover, install mount with included screws, torque to spec. No slide modification or fitting required.
Frequently Asked Questions
Does this work with the FN 545?
Yes. The FN 545 uses the same FN Low Profile Optics Mounting System™ as the 509 series. This mount is a direct fit.
Do I need a sealing plate with the Steiner MPS?
No sealing plate is required with this mount. However, we recommend using the Apex Super Clamp to expand the clamping range of your MPS optic for a tighter fit.
Will this mount work with suppressor-height sights?
Yes. The lower profile of this mount (compared to a plate stack) may improve co-witness with standard-height suppressor sights. Confirm your specific sight height and optic deck height.
Ships same business day if ordered before 2 PM ET. Backed by the Apex Tactical warranty against manufacturing defects. No returns on installed parts.
