Failure Resistant Extractor for FN 509

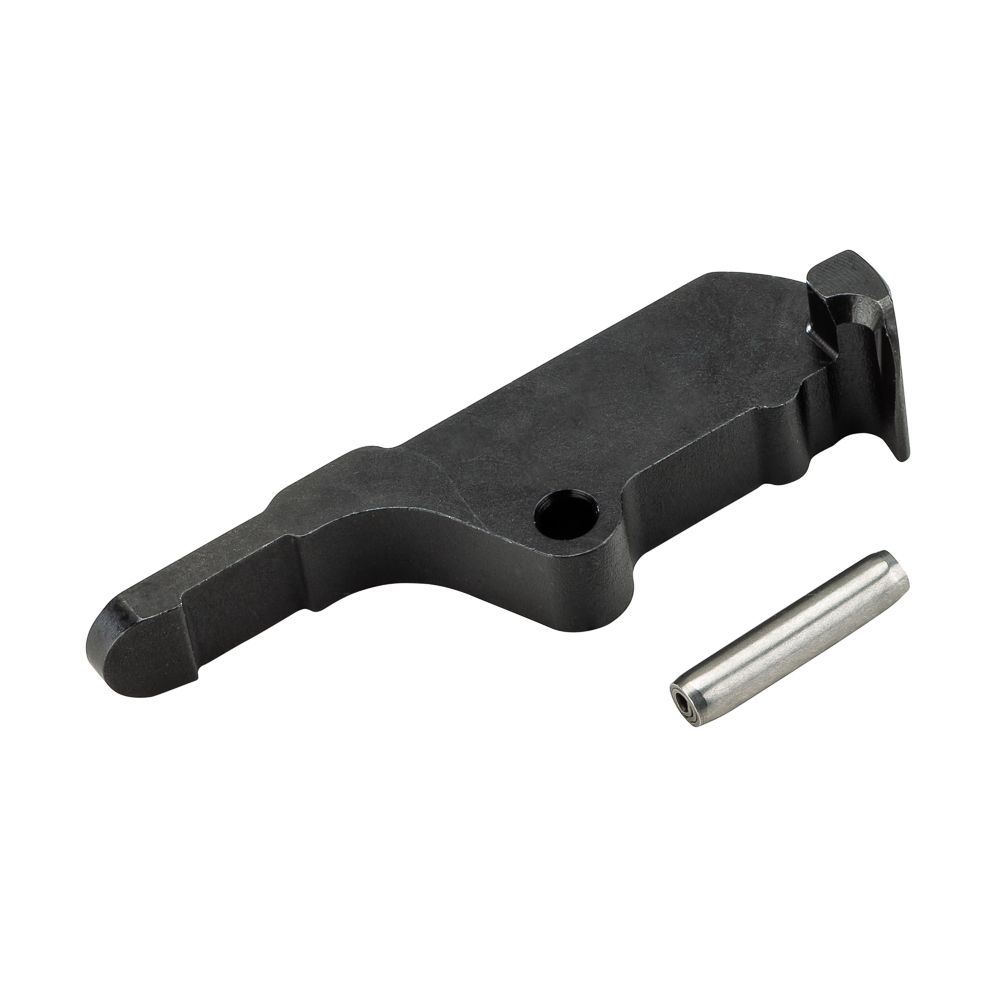

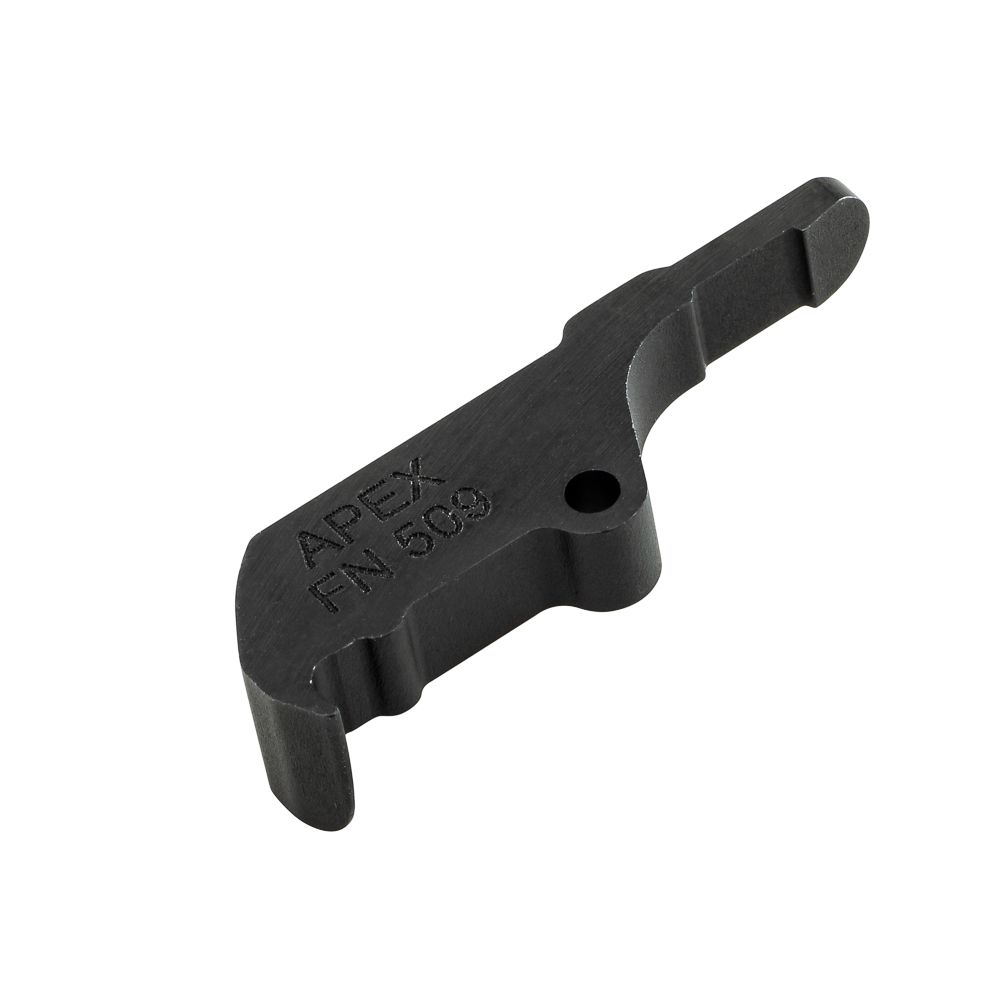

This is a drop-in replacement extractor for 9mm FN 509 pistols, machined from a single billet of heat-treated stainless steel. It solves the common problem of inconsistent extraction and ejection under high-round-count or adverse conditions. The critical hook engagement surface is cut via wire EDM to Apex’s proprietary geometry, which also directly improves feeding reliability—since the extractor controls the cartridge during the feed cycle, a worn or poorly profiled factory part is often the root cause of nose-dive or failure-to-feed malfunctions.

Compatibility

• FN 509 (all 9mm variants: standard, compact, midsize, tactical, LS Edge, MRD)
• Does NOT fit .40 S&W or .45 ACP models
• Direct replacement for factory extractor—no frame or slide modification required

Key Features

• Heat-treated stainless steel billet construction—resists peening and edge wear
• Wire EDM hook geometry optimizes case rim engagement and reduces extraction force variation
• Drop-in install using factory spring and pin
• Addresses both extraction and feeding-phase malfunctions caused by extractor wear

Install Difficulty: 2/5

Requires standard pin punch set (3/32″ or 2.5mm) and a small hammer. No fitting or filing needed. Retain factory extractor spring and plunger—replace only the extractor body. Estimated time: 5 minutes.

FAQ

Will this work with my FN 509 Compact Tactical?

Yes. This extractor is compatible with all 9mm FN 509 variants, including the Compact Tactical, LS Edge, and MRD models.

Do I need to replace the extractor spring at the same time?

Not required, but recommended if your current spring has over 5,000 rounds. Use the factory FN spring or an Apex spring if available.

What causes most feeding malfunctions in the 509?

Factory extractor hook wear or inconsistent geometry. This component controls the cartridge head during feeding—if the hook is too tight or too loose, rounds will fail to chamber reliably. The wire EDM profile in this part eliminates that variable.

Ships same business day if ordered before 2 PM EST. Backed by Apex’s standard warranty against manufacturing defects. No returns on installed extractors—inspect fitment before final assembly.
