Overview

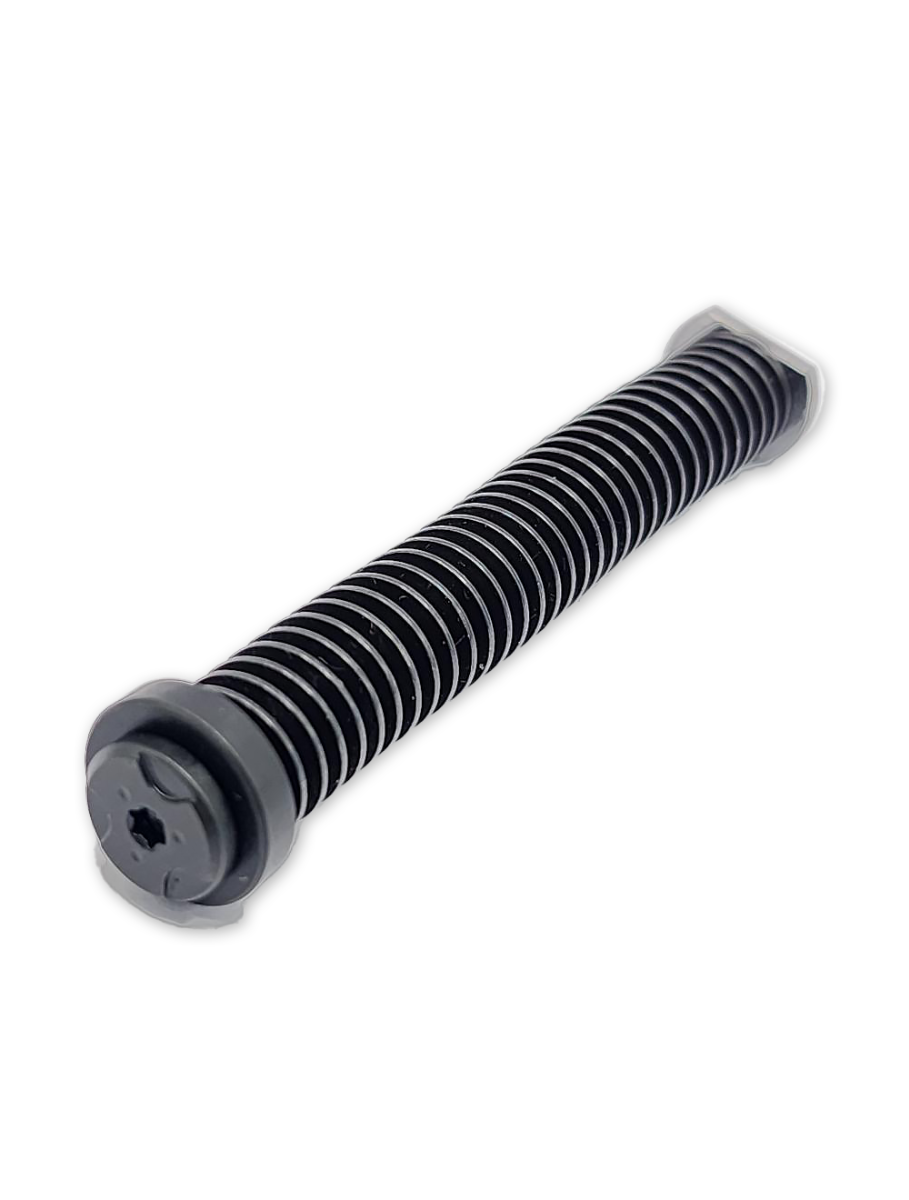

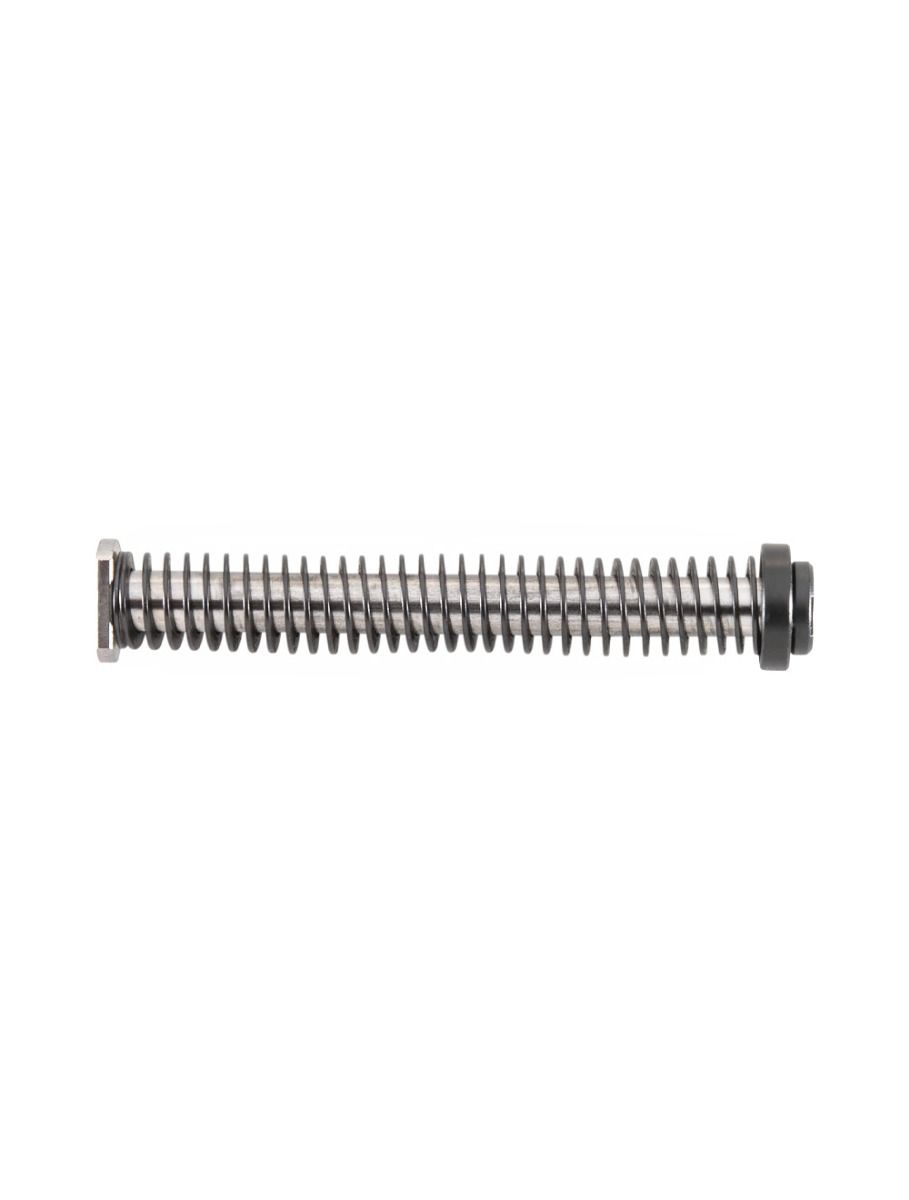

This is a direct drop-in replacement recoil assembly for Hellcat Pro length slides, designed to replace the factory recoil assembly. It accepts ISMI flat wire recoil springs, giving you the ability to adjust recoil spring force by swapping springs. The guide rod is machined from heat-treated stainless steel and polished for smooth operation, assembled in a raw stainless state.
Compatibility
- Springfield Hellcat Pro (factory slides)
- Springfield Hellcat Pro (compatible aftermarket slides, including Apex slides)
- Does NOT fit standard Hellcat (non-Pro) length slides
Key Features
- Direct drop-in replacement – no fitting required
- Accepts ISMI flat wire recoil springs for adjustable spring force
- Machined from heat-treated stainless steel, polished for smooth cycling
- Flats on flange end allow clamping in a standard bench vise for cap screw removal
- Cycling washer included – necessary for ISMI recoil spring function in Hellcat-style slides

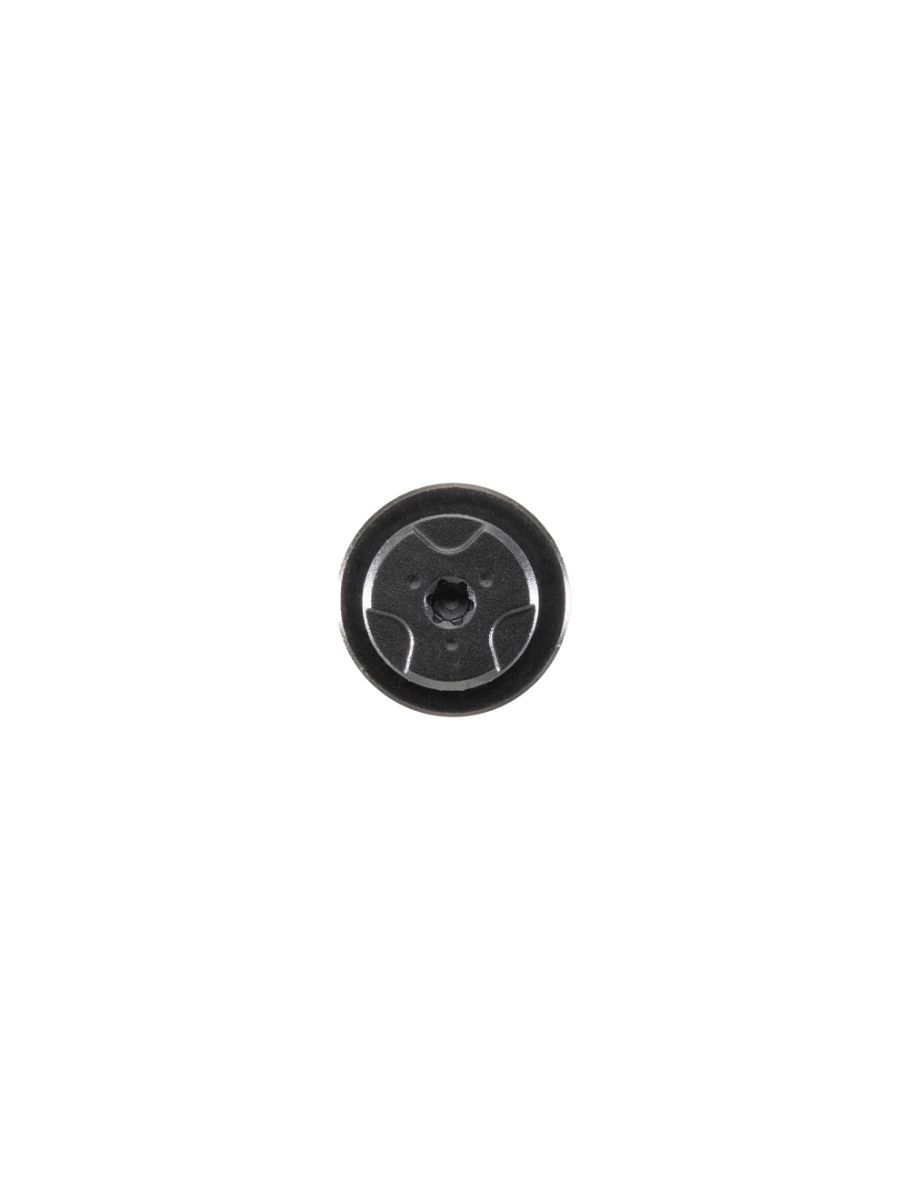

- Guide rod cap screw secures assembly when removed from slide
- Vibra-Tite 122 applied to end cap threads at assembly
- 100% made in the USA
Install Difficulty
2 out of 5. Requires standard hand tools (punch, small hammer, bench vise optional). Field-strip the slide, remove factory recoil assembly, drop in this unit. Changing springs adds one step: clamp guide rod base in vise, remove cap screw, swap spring, reinstall cap screw.
FAQ
Will this fit the standard Hellcat (non-Pro)?
No. This assembly is specifically for Hellcat Pro length slides. It will not function in a standard Hellcat slide.
What springs are compatible?
Standard ISMI flat wire recoil springs. You can adjust spring weight to tune cycling for different loads or compensator setups.
Is the guide rod captive?
No. The guide rod cap screw holds the assembly together when removed from the slide, but the spring is user-replaceable. Use the flats on the flange to clamp it in a vise for spring changes.
Shipping & Warranty
Ships same business day if ordered before 2 PM EST. Limited lifetime warranty against manufacturing defects. Returns accepted within 30 days of purchase in original condition.
