This is a direct-fit thread protector for the factory threaded barrels on the FN 545 Tactical and FN 510 Tactical. It replaces the OEM cap to shield the .578-28 muzzle threads from impact, debris, and cross-threading during storage or range use. The offset pentagon profile also prevents the protector from rolling off a workbench.
Compatibility
- FN 545 Tactical (factory threaded barrel)
- FN 510 Tactical (factory threaded barrel)
- Any pistol barrel with .578-28 TPI threads and approximately .515” of thread length from shoulder to muzzle tip
Key Features
- .578-28 TPI thread pitch – matches FN factory barrel spec
- Captured O-ring pre-installed; stays in place when protector is removed
- Offset pentagon pattern – non-rolling design, distinctive look

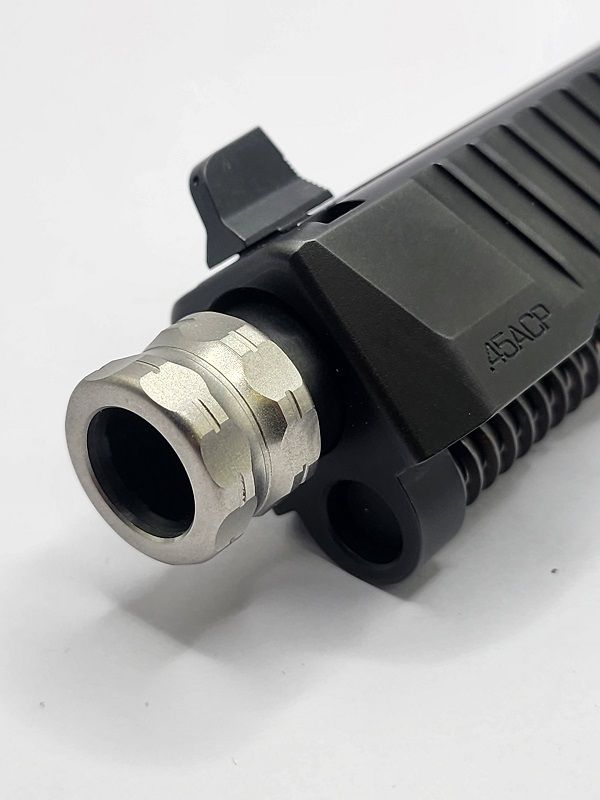

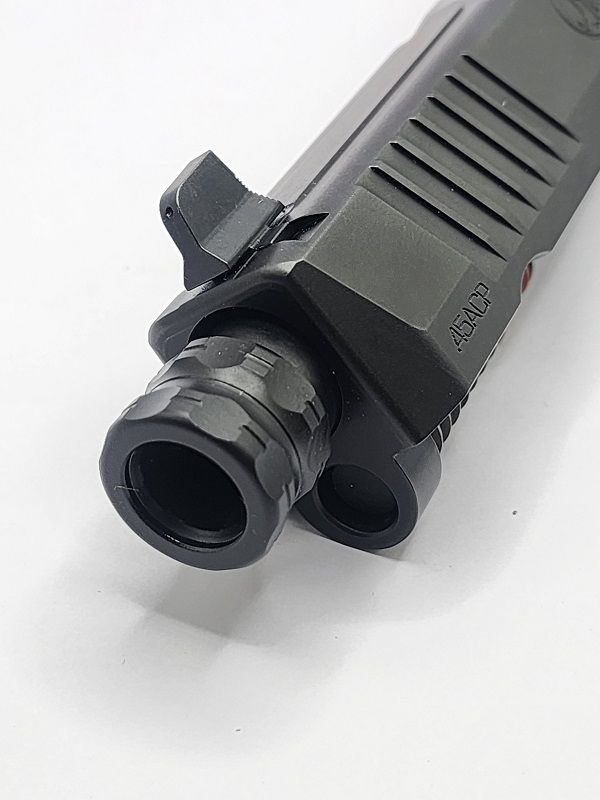

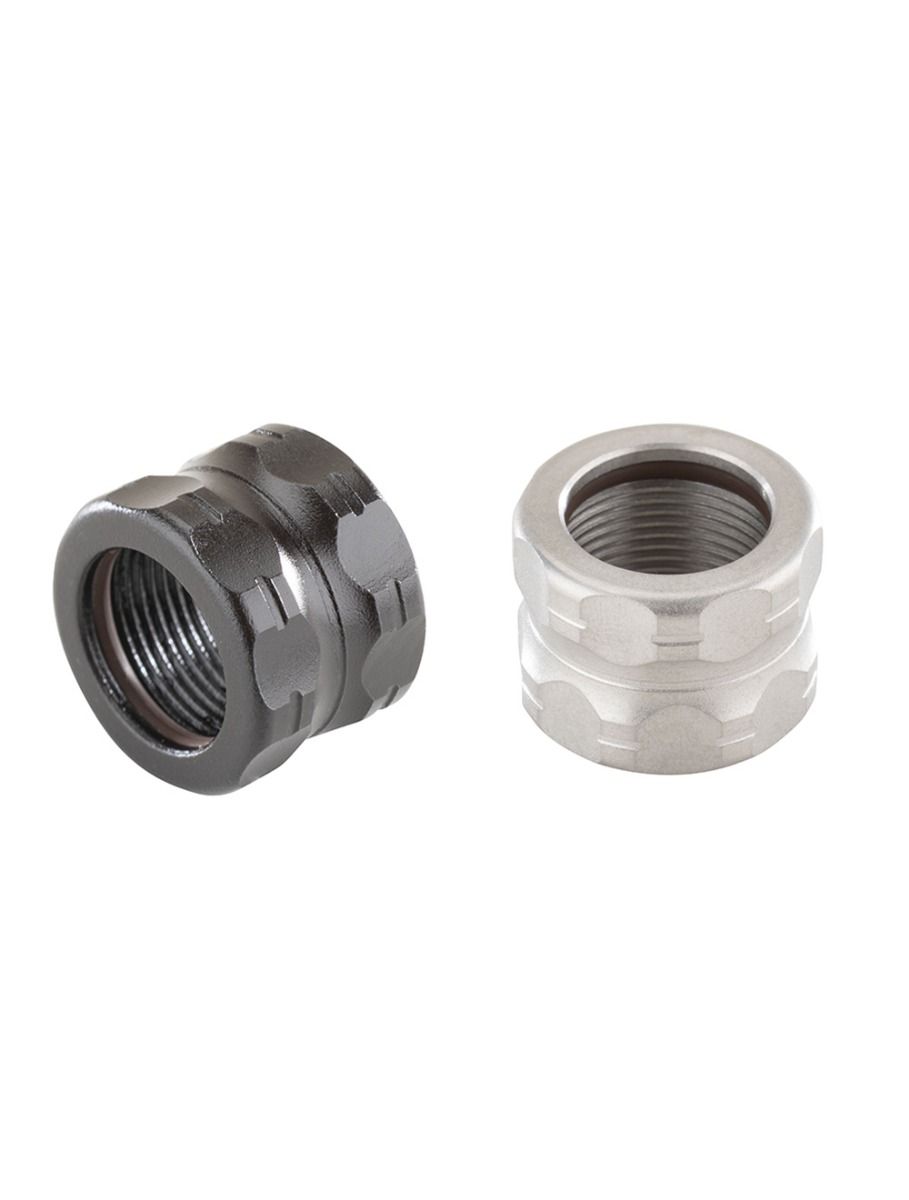

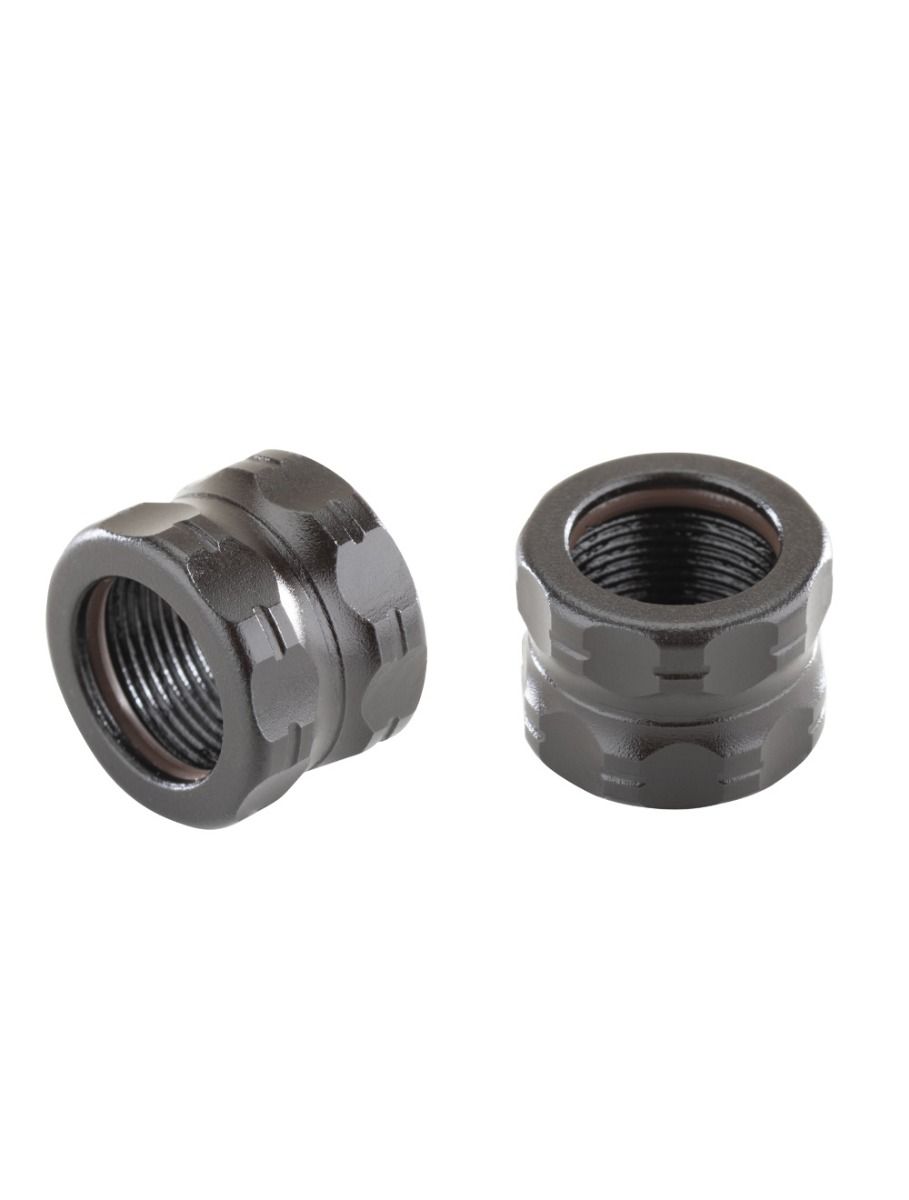

- Two finish options: bead-blasted (white) or Armorlube (black)
- Low-profile length – does not add significant muzzle weight
Install Difficulty
1/5 – Hand-tighten onto clean, dry threads. No tools required. Use a drop of medium thread locker if you want a semi-permanent fit.
FAQ
Will this fit a barrel with a different thread pitch?
No. This protector is specifically cut for .578-28 TPI. It will not thread onto 1/2×28, M13.5×1 LH, or other common pistol muzzle threads.
Does the O-ring prevent the protector from loosening?
The captured O-ring provides friction retention during carry and storage, but it is not a lock washer. For competition or high-round-count use, apply a small amount of Vibra-TITE or similar removable thread locker.
What is the difference between the Bead Blasted and Armorlube finishes?
Bead Blasted is a matte white/silver surface with no coating. Armorlube is a black, corrosion-resistant baked-on finish. Both are durable; choose based on your slide color preference.
Shipping & Warranty
Ships same business day if ordered by 2 PM ET. Backed by Apex Tactical’s standard warranty against manufacturing defects. Not responsible for damage caused by cross-threading or over-torquing.
